Turnkey Liquid Filling Line Solutions
From water treatment and bottle blowing to filling, labeling and palletizing — every machine engineered to work together. Water, juice, CSD and 5-gallon lines, 1,000–36,000 BPH.
From water treatment and bottle blowing to filling, labeling and palletizing — every machine engineered to work together. Water, juice, CSD and 5-gallon lines, 1,000–36,000 BPH.
Water · Juice · Carbonated · 5-Gallon — five turnkey production systems, each engineered as a matched assembly from water treatment through palletizing.
1,000
–36,000BPH
2,000
–10,000BPH
300
–2,000BPH
1,000
–24,000BPH
2,000
–36,000BPH
RO purification, UV sterilization, ozone dosing — matched to local source water quality.
In-line or stand-alone stretch blow moulding. 50ml–10L PET, round or square, heat-resistant options.
Rinsing, filling and capping in a single monobloc. Gravity, counter-pressure or hot-fill technology — selected by product.
Heat shrink sleeve, OPP hot-glue, or self-adhesive labeling. Matched to bottle geometry and label material.
PE shrink wrapping, carton packing, or tray packing. Automatic palletizer available for high-speed lines.
The same production facility can run different products by switching filling modules and adjusting process parameters — reducing capital investment and expanding market reach.

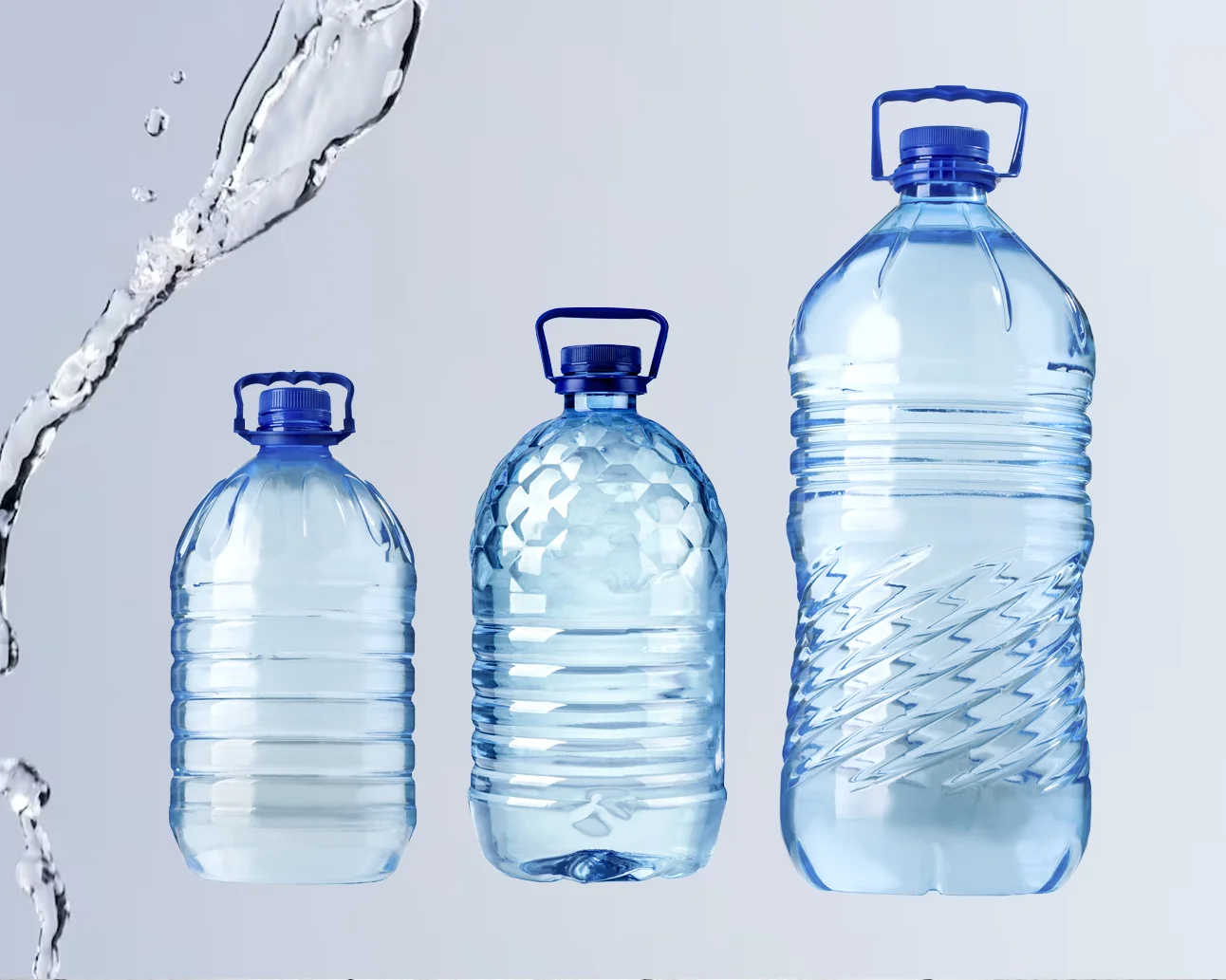

Spring, RO, mineral and ozonated water in 250ml–10L PET. Gravity or pressure filling, 1,000–36,000 BPH.

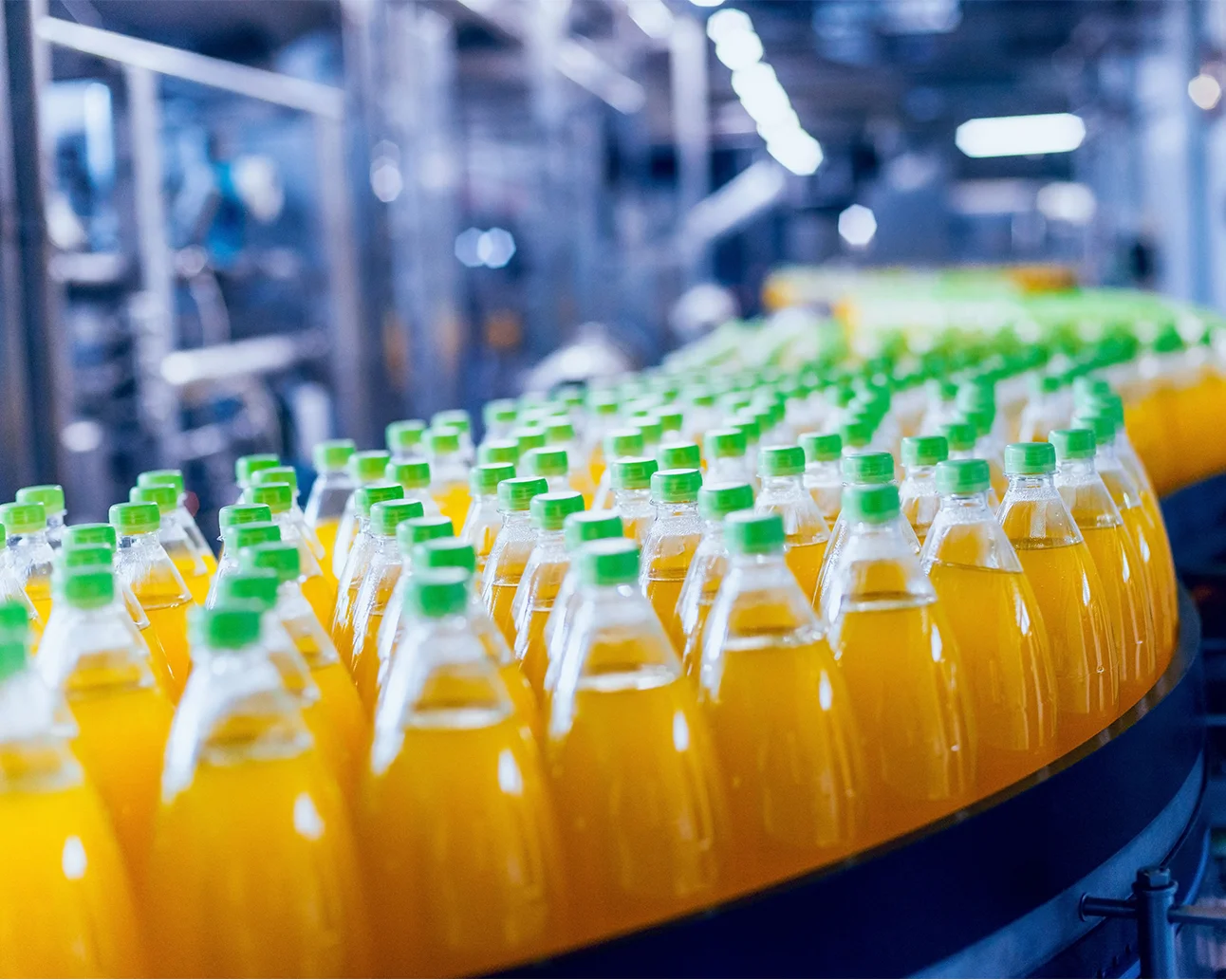

Hot-fill rinsing-filling-capping for 100% juice, NFC juice, tea, milk tea, energy drinks, 0.25–2.5L PET. 1,000–24,000 BPH.

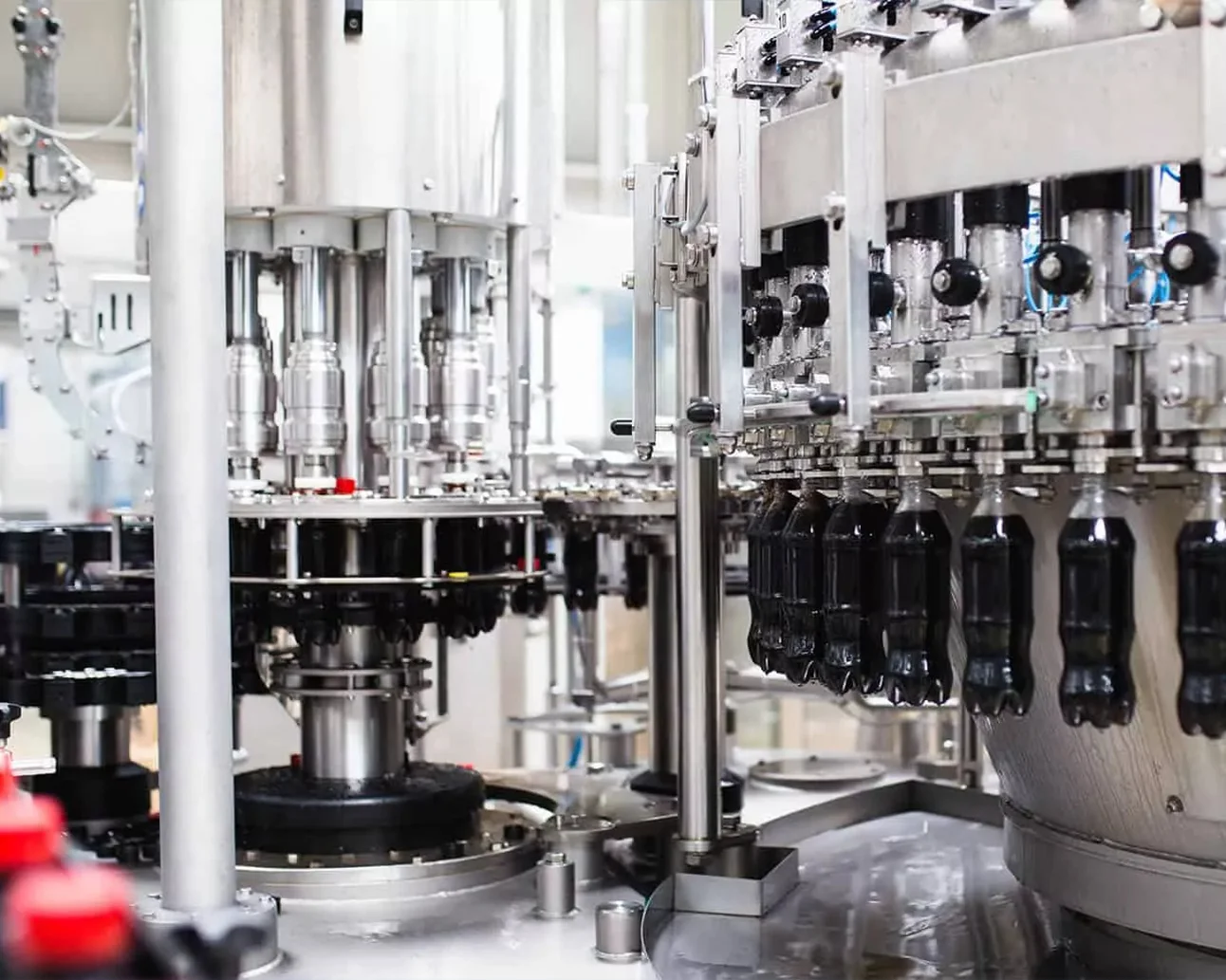

Counter-pressure CGFR filling for cola, sprite, tonic water, flavored soda. CO₂ retention technology, 2,000–36,000 BPH.

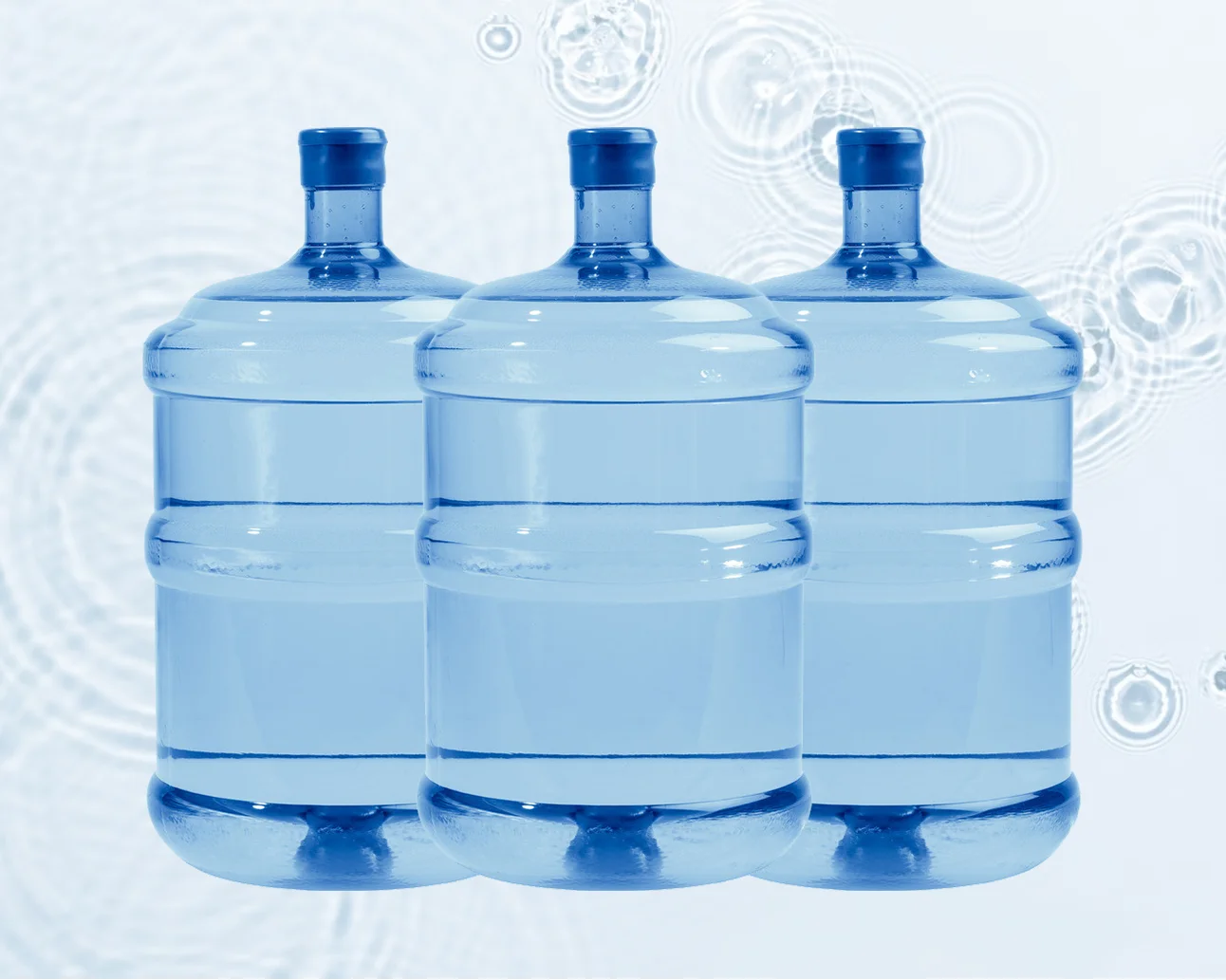

Full wash-fill-seal cycle for 18.9L PC and PET barrels. Inversion sterilization, oxygen-free filling. 300–2,000 BPH.
UHT sterilization combined with aseptic or hot-fill packaging for milk, soy milk, oat drink, plant-based beverages.
Glass or PET bottle filling for energy drinks, sports drinks, vitamin water. High-precision dosing, tamper-evident capping.
Every machine leaves our factory in Zhangjiagang, Jiangsu with full documentation — CE declaration, factory test reports, and an installation checklist.
All filling lines are CE marked and comply with European Machinery Directive 2006/42/EC — accepted for import across 50+ countries worldwide.
All product-contact parts in food-grade stainless steel. Electropolished interiors, no dead corners, CIP/SIP compatible throughout.
PLC touch-screen control with internationally sourced electrical components — easier local servicing, predictable spare part availability.
Full-speed trial run at our factory before shipment. Customers can attend in person or remotely via live video inspection.
A complete turnkey line includes every machine from raw water treatment through to the finished packed pallet — with all conveyors, electrical interfaces and control logic pre-integrated. A single filling machine only handles the rinse-fill-cap step. Buying a full line from one supplier eliminates integration risk, simplifies spare parts sourcing, and gives you a single warranty point.
Standard lines (1,000–10,000 BPH) typically take 60–90 days from order confirmation to factory acceptance test, plus 20–35 days sea freight. High-capacity lines (above 20,000 BPH) require 90–120 days manufacturing. Installation and commissioning on-site normally takes 7–15 days depending on the line complexity.
Yes, within certain product categories. A cold-fill machine can switch between still water and non-carbonated beverages (mineral water, sports drinks, dilute juice) by cleaning the product circuit between runs. Hot-fill products require a dedicated RCGF series machine with heat-resistant components. We will recommend the right configuration based on your product mix during the quotation process.
We provide a 12-month warranty on all machines. During warranty, parts are replaced at no charge. After warranty, we maintain a spare parts inventory for all current models. Remote diagnostics are available via video call with our engineers. For complex faults, on-site service engineers can be dispatched to most countries within 72 hours.
Start with your target daily output in litres, then divide by your planned production hours (typically 16–20 h/day at 85–90% OEE). For example: 200,000L per day ÷ 0.5L per bottle ÷ 18h ÷ 0.88 OEE ≈ 25,250 BPH. Add 20% headroom for future growth. Share your target and we will suggest the closest standard model.
