3-10L Water Filling Line

3-10L WATER FILLING LINE SOLUTION

BRIEFLINE SOLUTION

With over 15 years of experience in designing and implementing customised complete 3-10L water filling line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduce production costs while retaining their durability and expanding design opportunities.

Key Features Of Water Line

01
It can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts.
02
It can apply to filling 3-10L PET water bottle with a few adjustment.
03
Automatic water filling machine adopts Rinsing / Filling / Capping 3-in-1 technology, PLC control, touch screen, it is mainly made of SUS304/ SUS316.
04
Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.
05

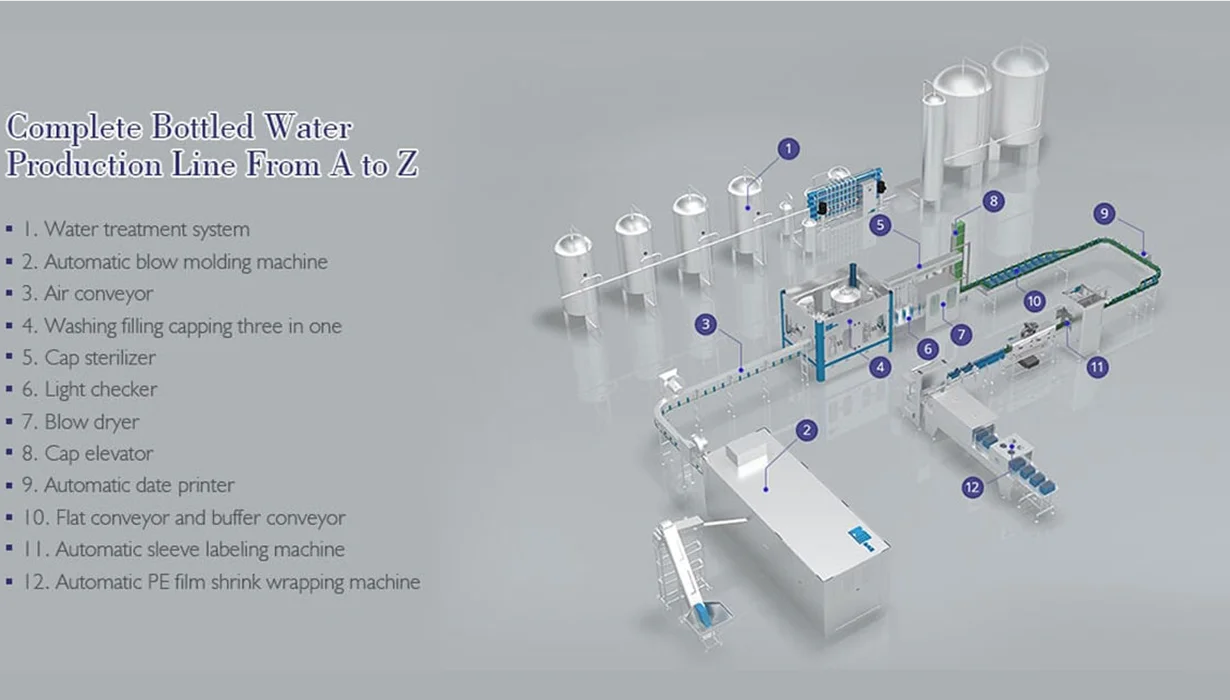

We can provide complete beverage ideal solution — blowing, filling, packing for PET bottle.
06
Filling accuracy is more or less than 1%.

Description

This 3L-10L water bottle filling machine is mainly used for washing, filling and capping PET bottle which can fill non-carbonated drinks such as mineral water, pure water, wine and so on.
Bottle washing, filling and capping are achieved in one machine.
The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

BRIEF INTRODUCTION

3-10L water filling line

PROJECT NAME: AUTOMATIC LINEAR TYPE 3-10L BIG BOTTLE FILLING MACHINE				WATER / OIL / DAILY CHEMICALS AND SOMETHING THAT VERY VISCOUS.
Bottle Material	Bottle Shape	Filling Volume	Cap Type	Accuracy	Power Voltage	Control Voltage	Control
PET / Glass / PE	Round / Square	3L-10L	Plastic Cap / Metal Cap	±0.5%	380V 50HZ 3phase+N+G	24 V DC/AC	PLC + Touch Screen

PACKAGING SYSTEM
Packing System	Min, Spec
PE FilmCarton Box	1
	2*3
	3*4
	4*6
	3*5

PALLETIZING SYSTEM
Hot Melt Roll-Fed
PVC Shrink Label
Full Label / Half Label
Manual / Automatic

USER AMBIENT CONDITIONS	USER ELECTRICAL SUPPLY SPECIFICATION
Temperature: 10~40℃ Humidity: No Dew	Voltage: 380V±5% 3phase Frequency: 50HZ±1%

CHOOSE FILLING MACHINE

3-10L FILLING LINE SOLUTION

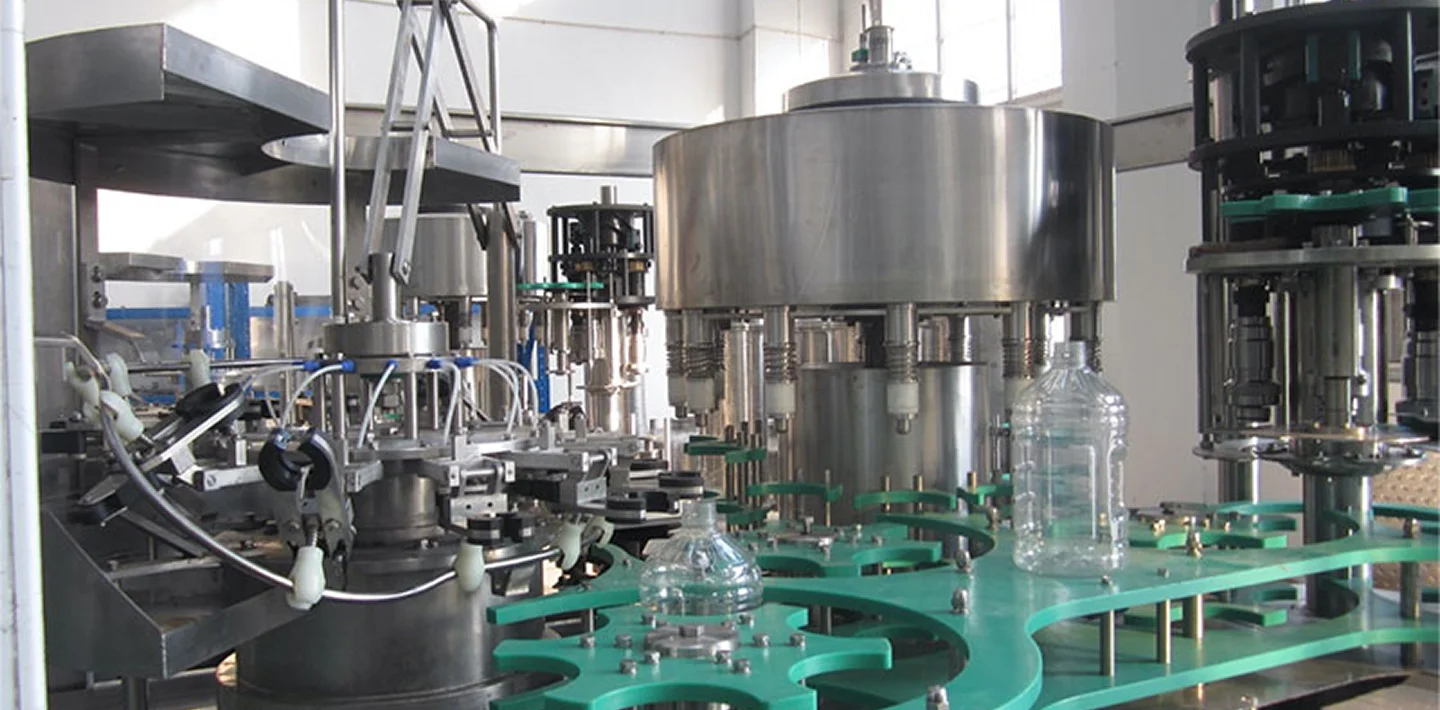

3-10L Rotary Style Water Bottling Machine

ROTARY FILLING

3-10L Rotary Style Water Bottling Machine Is Designed Especially For 3-10liter Bottles, Including The Function Of Bottle Washing, Water Filling, Bottle Capping.
All The Machine Process Is Controlled By PLC Program With High Automatically, And Have The Safe Device For Interlock.
The Whole Machine Is Made Of Stainless Steel SUS304 Or SUS316, Meet The Demands Of Food Hygiene, With The Feature Of Reasonable Structure, Easy In Operation, High Filling Precision.

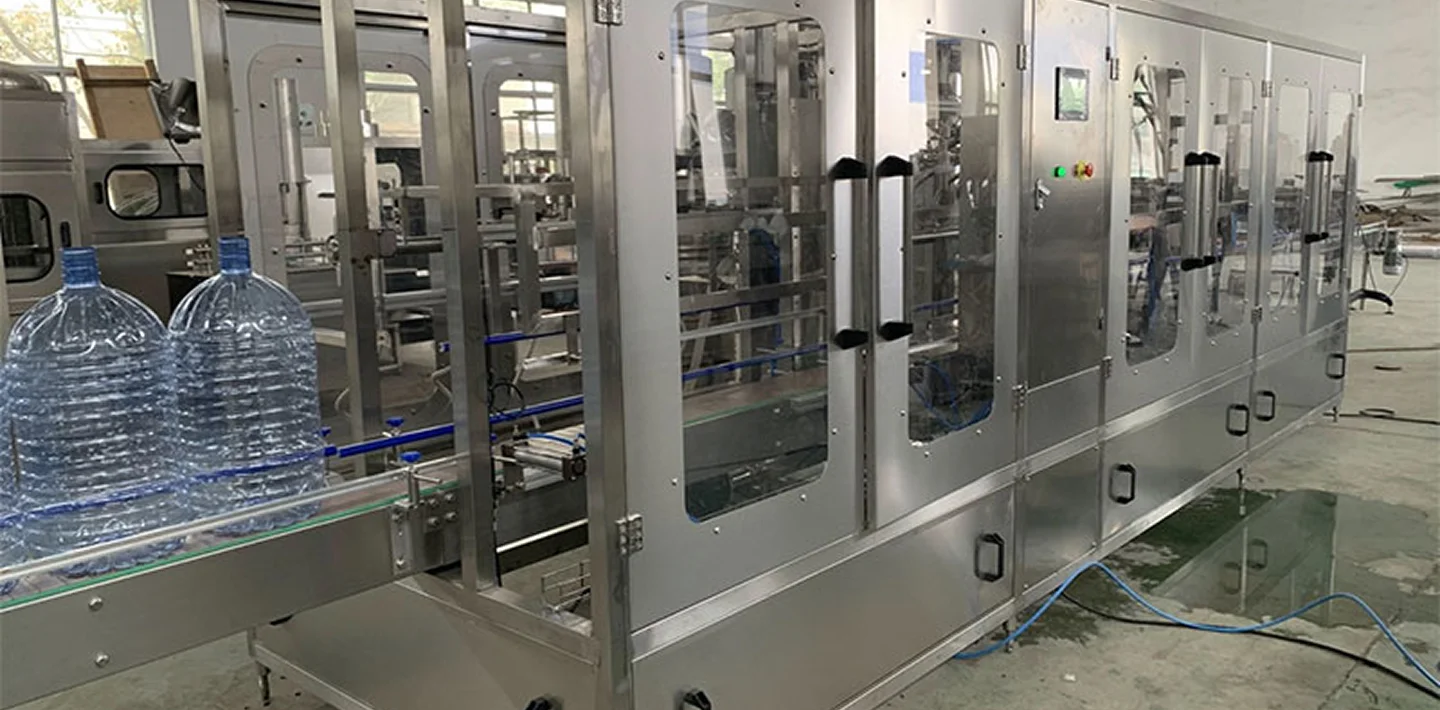

LINEAR FILLING

Tech Machine Can Also Provide The Customer With The Linear Type Filling Machine, The Advantages Of Which Is Less Occupation, Low Energy Consumption And Small Investment. This Machine Combines Rinsing, Filling And Capping Together, Requiring Less Space And Low Energy-Consumption. It Can Fulfil The Process From Empty Bottles To Finished Products On One Single Machine, Which Is High Efficient, Energy-Saving And Sanitary.
The Oretical Output: 300-1000bph
