330ml-2L Water Filling Line

BRIEFLINE SOLUTION

Water is a multifaceted product: natural spring water, purified water, carbonated water, flavored water... What process can be used to prevent bromate formation? How to deploy mechanical filling valves to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Tech Machine, the expert in liquid product filling, will always provide you with the best solution for your products.

330ml-2L PET bottled water production line

Key Features Of Water Line

  • 01

    Water filling line can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts.

  • 02

    Water filling line production capacity usual is in 1,000–36,000 BPH, 0.25–2.5L PET bottles are available.

  • 03

    Automatic water filling machine adopts Rinsing / Filling / Capping 3-in-1 technology, PLC control, touch screen, it is mainly made of SUS304/SUS316.

  • 04

    Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS to water filling production line.

  • 05

    The whole production line accuracy is more or less than 1%.

  • 06

    We can provide complete beverage ideal solution — blowing, filling, packing for PET bottle.

Production Line
3D Virtual Show

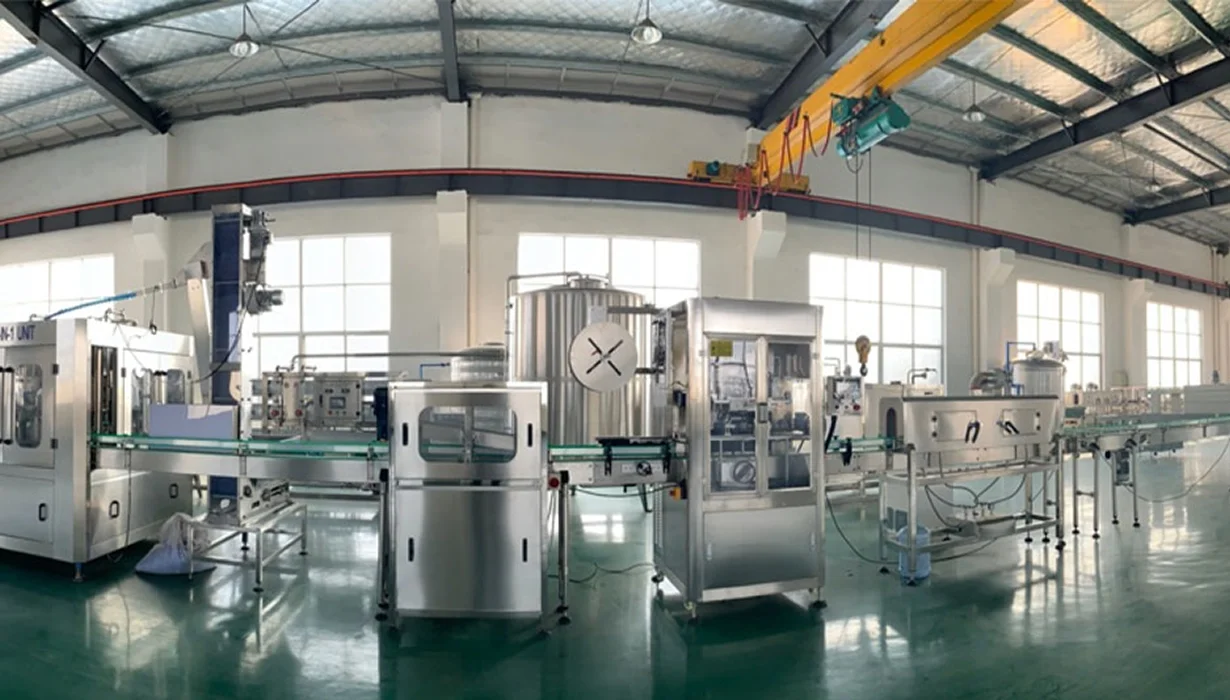

330ml-2L Water Filling Production Line — Taike Machinery factory floor

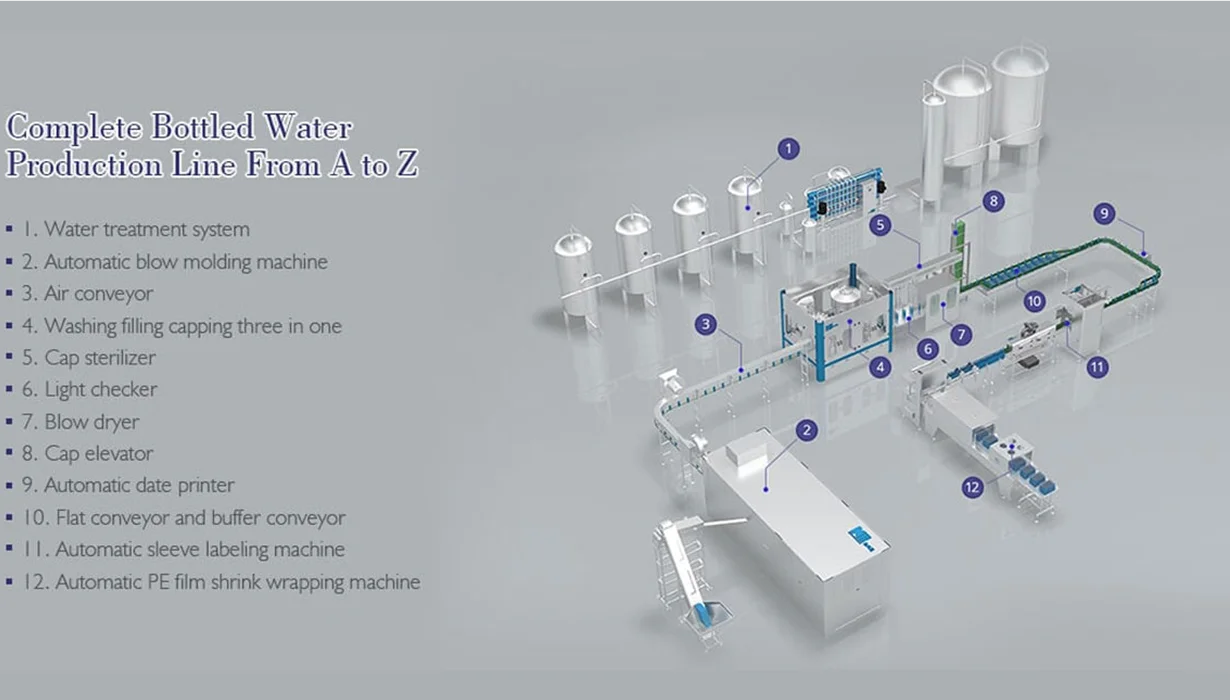

Complete Bottled Water Production Line From A to Z — 3D Virtual Show

BRIEF INTRODUCTION

330ml-2L waterfillingline

MODEL CGF8-8-4 CGF14-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
CAPACITY (500ML) 2000–3000 BPH 3000–4000 BPH 6000–8000 BPH 8000–10000 BPH 12000–15000 BPH 16000–18000 BPH
FLOOR AREA 200 m² 400 m² 600 m² 1000 m² 2000 m² 2500 m²
TOTAL POWER 100 KVA 100 KVA 200 KVA 300 KVA 450 KVA 500 KVA
OPERATOR WORKERS 8 8 6 6 6 6
WATER COMB-BLOCK MACHINE MODELS SELECTION
MACHINE MODEL NO. OF BLOWER CAVITY NO. OF FILLING VALVE NO. OF CAPPING HEAD CAPACITY BPH (1.5L / 1L / 0.5L)
CGX06-18-0661865500 / 8000 / 12000
CGX08-24-0882487000 / 10000 / 16000
CGX10-32-101032109000 / 13500 / 20000
CGX10-40-1010401012000 / 18000 / 20000
CGX12-40-1512401512000 / 15000 / 24000
CGX14-45-1514451513000 / 20000 / 28000
CGX16-50-1516501515000 / 21000 / 30000
CGX18-60-2018602020000 / 24000 / 30000

LAYOUT- PET BOTTLE WATER FILLING MACHINE

PET Bottle Water Filling Machine Layout — Filling, Capping, Washing zones

WASHING HEADS

  • – All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
  • – 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
  • – All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

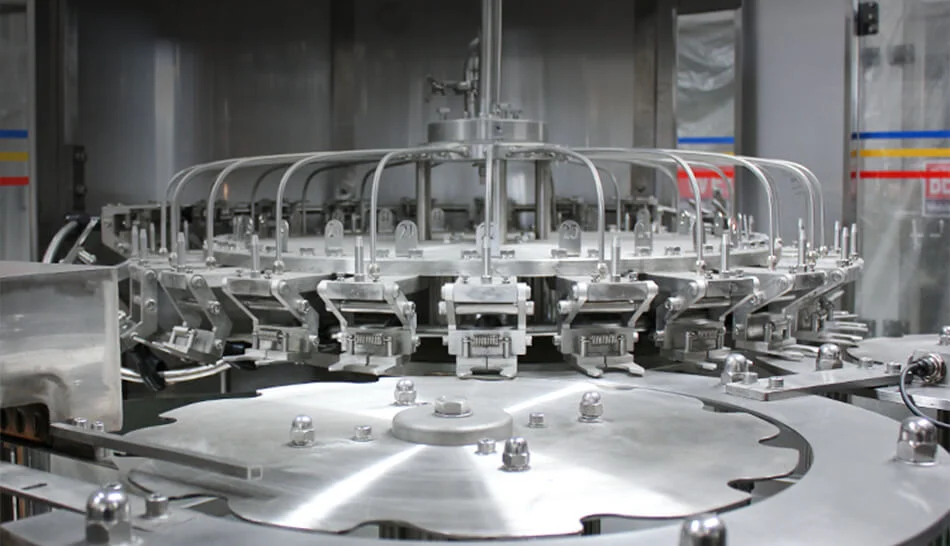

Washing Heads detail — CGF series water filling machine

FILLING HEADS

  • – 304/316 Stainless steel high precision filling nozzle
  • – Filling volume adjustable in fine rank, same liquid level after filling
  • – All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
  • – 304/316 stainless steel washing pump
Filling Heads detail — CGF series water filling machine

CAPPING HEADS

  • – Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
  • – All 304/316 stainless steel construction
  • – No bottle no capping
  • – Automatic stop when lack of bottle
Capping Heads detail — CGF series water filling machine

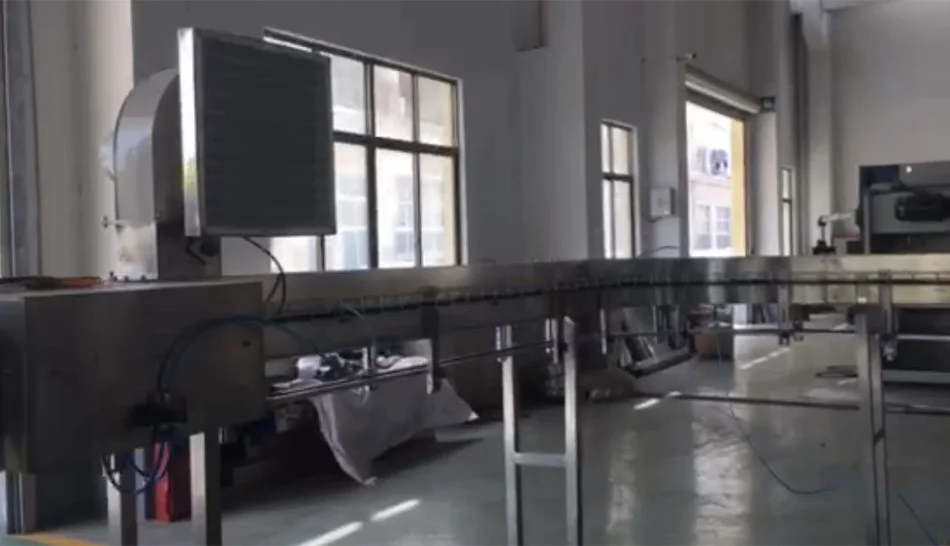

AIR CONVEYOR

  • – Bottle neck holding bar: 7.5 millions Ultrahigh molecular polyethylene
  • – Bottle blocker: Ultra high molecular green color*202 round pipe
  • – Flang gripper: Ultra high molecular 304
  • – Fan 2p Carbon steel with SUS 304 cover with Siemens motor
  • – Pre-filter G4 Camfil Swedish
  • – Air conveyor frame: SUS304 square pipe
  • – Breaker and contractor: Schneider French
  • – Photo electrical (photo-sensor): sick
  • – The whole air conveyor working smoothly, no jam phenomenon
Air Conveyor detail — CGF series water filling line

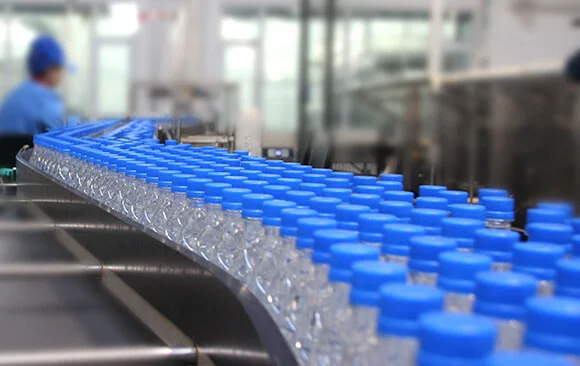

FLAT CONVEYOR

  • – Energy saving. High efficient. Adapt to customer factory layout
  • – Special lubrication system, keep products clean, health, safety
  • – Extended service life
  • – Electric eyes design keep whole line running safety and quickly
Flat Conveyor detail — CGF series water filling line

FLOW DIAGRAM

OF LAYOUT-PET MINERAL WATER PRODUCTION LINE

Flow Diagram — PET Mineral Water Production Line layout
  • Raw water tank + Raw water pump
  • Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
  • Reverse Osmosis (one level)
  • UV sterilizer
  • Finished water tank + Pure water pump
  • All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
  • Stainless steel high pressure film shell
  • Online type pressure auto self-protection device
  • Online type electricity indicator (with stable compensation)
  • System safe protecting and alarm system
  • System frame

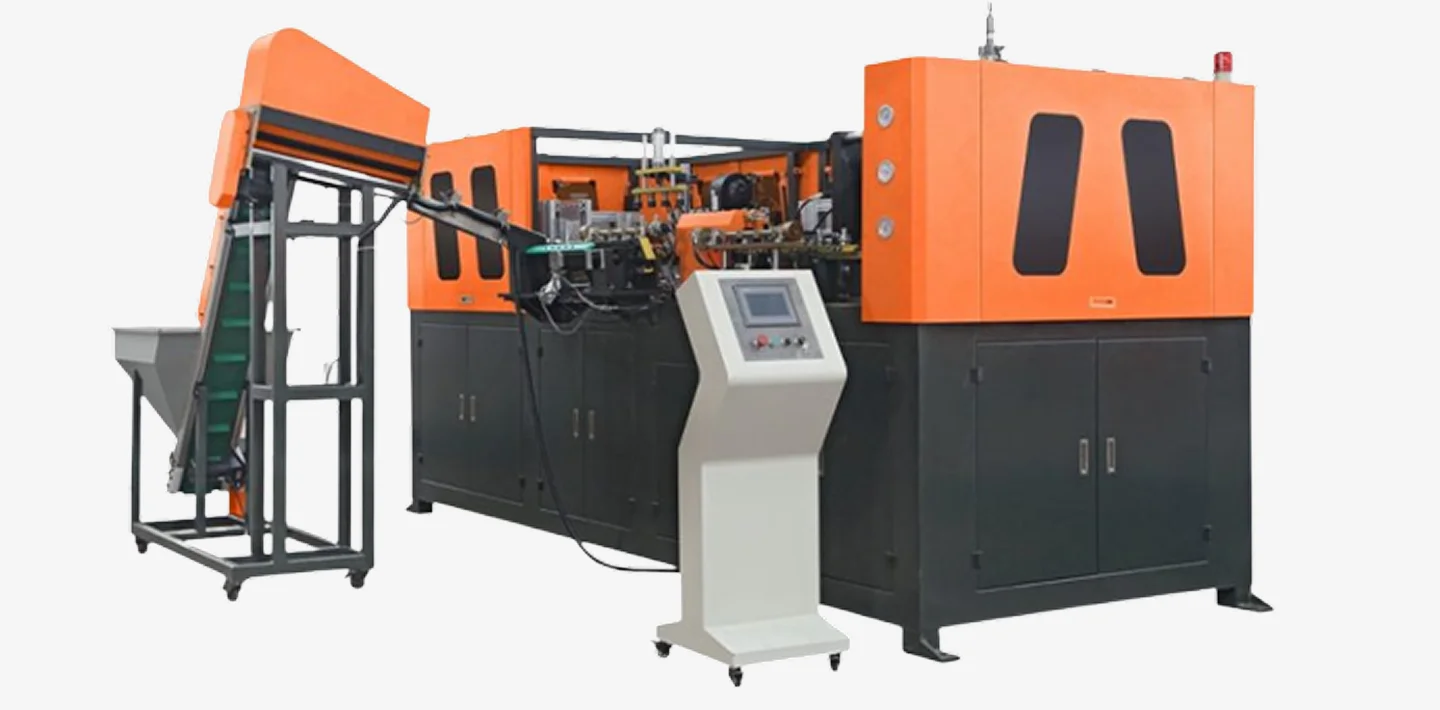

Bottle Blowing Machine — PET plastic container production

Bottle Blowing Machine

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. It is necessary for the water filling production line, 330ml-1L water filling machine line.

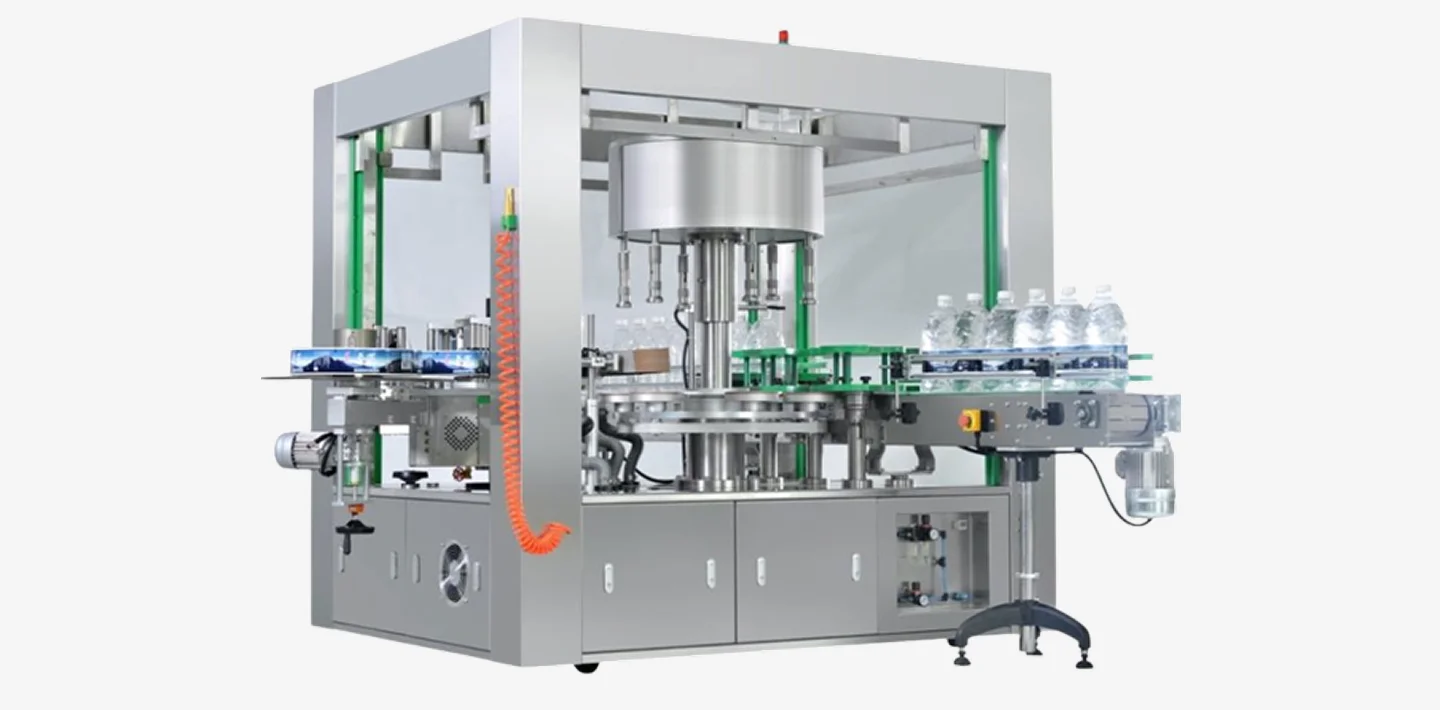

Bottle Labeling Machine

  • Heat shrink sleeve labeling machine
  • OPP Hot melt labeling machine
  • PVC label stick labeling machine

Tech Machine LABELLING offers a complete range of auto-matic labelling machines for glass, plastic and metal containers, for the beverage, food, household /per-sonal care, wines/spirits, chemical, pharmaceutical, and packaging industries.

Bottle Labeling Machine — shrink sleeve, OPP, PVC label

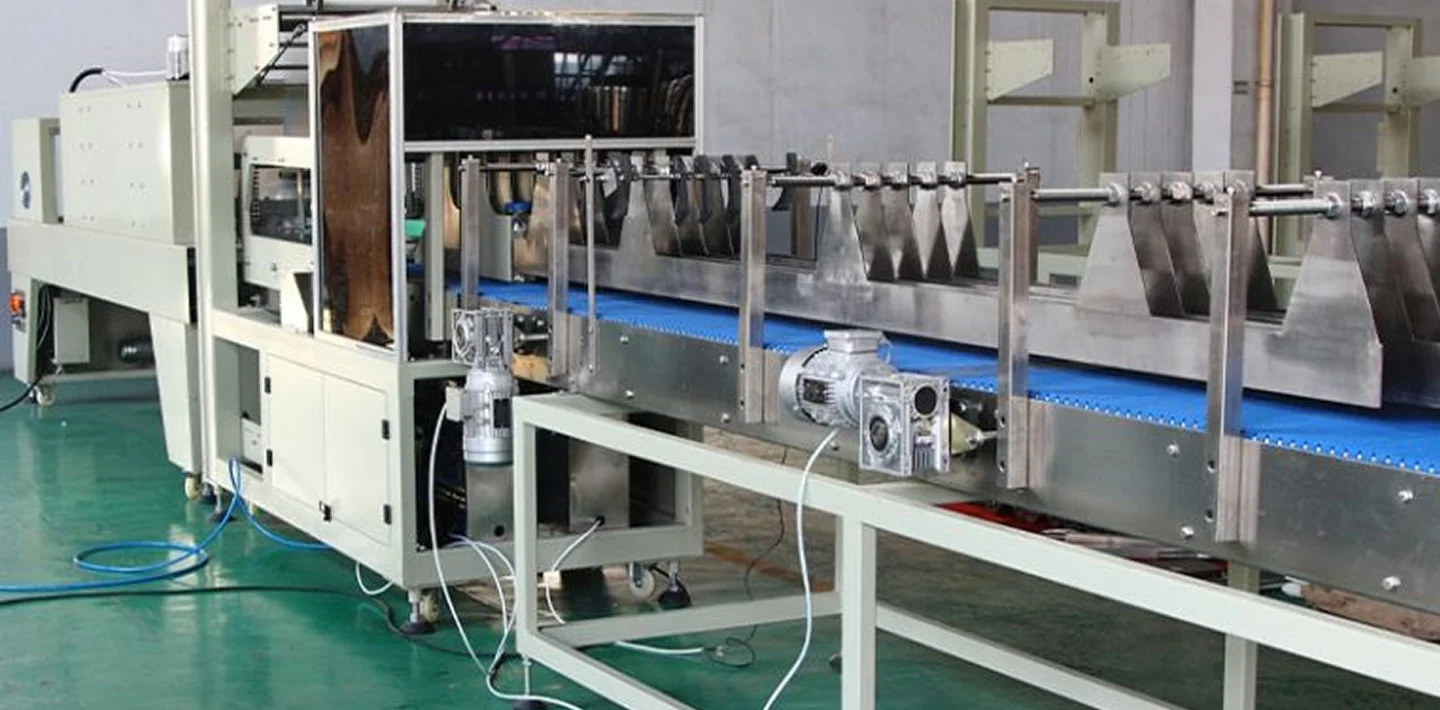

Bottle Shrink Wrapping Machine — PE film, half-tray, carton

Bottle Shrink Wrapping Machine

  • PE film shrink wrapping machine
  • Half-tray shrink wrapping machine
  • Carton box packaging machine

The range has been designed with modular units, with the large majority of structural elements shared between the different models. Common packaging methods on the market are pe film packaging and carton packaging.
